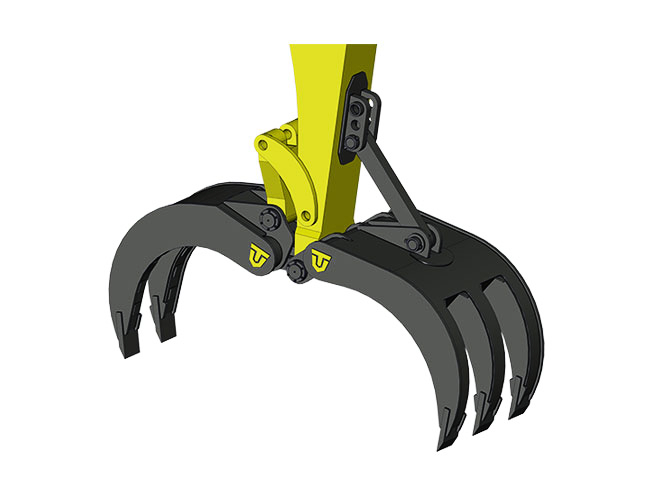

RG Mechanical grapple
Ideal in lifting, transport and loading operations in recycling centers, waste loading/unloading, demolition work, scrap handling and rocks.
-
15 models -
weights: from 95 to 11.000 kg -
excavator weights: from 1,2 to 170 ton -
openings: from 1.000 to 5.000 mm -
rotation: no
Model with “independent fulcrum”: it pushes on a saddle attacks placed on the jaw and not directly on the fulcrum. Extremely easy to use when handling large boulders.
- 5-tooth configuration, 2 on the front and 3 on the back
- Totally built in HARDOX 400
- No hydraulic system required because it exploits the thrust force of the piston of the excavator's penetrating arm
- Connecting rod and support to be welded supplied with the grapple
- Support with 3 holes: 3 positions = 3 different jaws opening
- Greasing points on the fulcrum pins
