Peakwash

Wheel wash systems

4 Peakwash wheel washing systems: Spinner, Easy, Mobile and stationary.

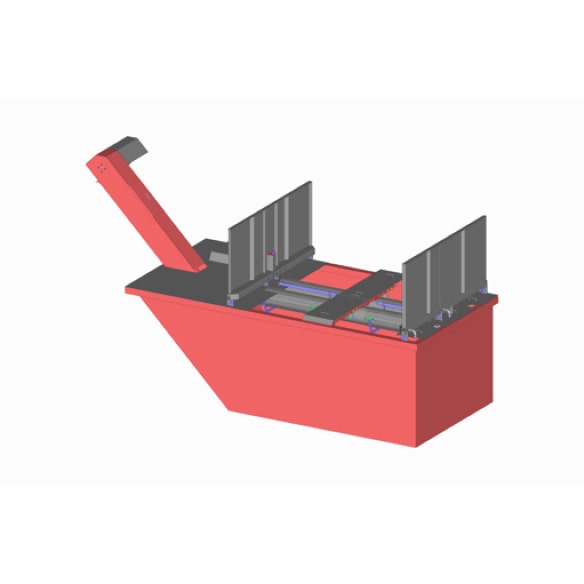

PEAKWASH SPINNER

PEAKWASH SPINNER wheel washing systems are compact and easy to install.
For a small number of trucks per hour. Systems are suitable for short and long term usage at construction sites, recycling sites, industrial sites. Simple and fast installation of these wash systems makes them particularly suitable for short-term usage.
Option: oil separator, winter condition

Technical Parameters	Spinner S	Spinner M	Spinner L
Maximum number of vehicles per hour:	15 vehicles per hour	20 vehicles per hour	25 vehicles per hour
Passing width (in the direction of travel):	2 750 mm	2 750 mm	2 750 mm
Overall width (in the direction of travel):	6 050 mm	6 150 mm	6 550 mm
Overall length (in the direction of travel):	1 400 mm	1 900 mm	2 400 mm
Depth in field:	1 150 mm	1 400 mm	1 650 mm
Height of sidewalls:	1 200 mm	1 200 mm	1 200 mm
Total weight:	3.1 t	3.7 t	4.2 t
Electric power:	8.2 kW	11.5 kW	20.0 kW
Tank Volume:	4.8 m³	7.5 m³	11.5 m³
Water consumption per cycle:	approximately 30 l	approximately 40 l	approximately 50 l
Number of pumps:	1 piece	2 pieces	3 pieces
Maximum pump power:	1 600 l/min	3 200 l/min	4 800 l/min

Request a quote

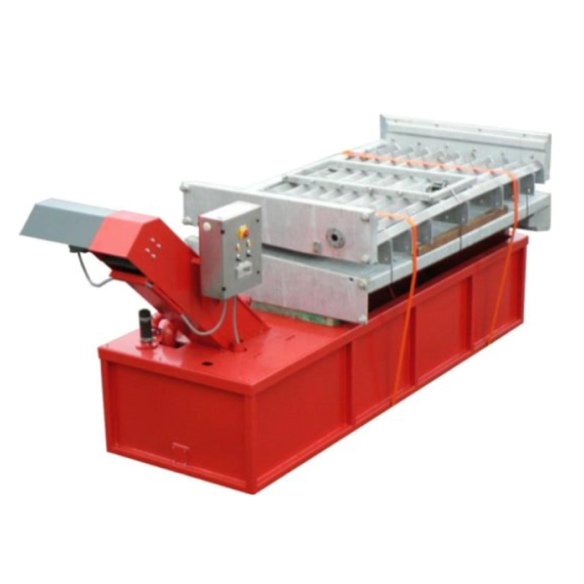

PEAKWASH EASY

PEAKWASH EASY wheel washing systems are powerful, compact and easy to install.
For a medium number of trucks per hour. Systems are suitable for short and long term usage at construction sites, quarries, dump sites, recycling sites, mines, industrial sites and sand and gravel pits. Simple and fast installation of these wash systems makes them particularly suitable for short-term usage.
Option: oil separator, winter condition

Technical Parameters	EASY S	EASY M	EASY L
Maximum number of vehicles per hour:	40 vehicles per hour	50 vehicles per hour	60 vehicles per hour
Passing width (in the direction of travel):	2 750 mm	2 750 mm	2 750 mm
Overall width (in the direction of travel):	6 050 mm	6 150 mm	6 550 mm
Working length (in the direction of travel):	3 500 mm (1 x turn of wheels)	3 500 mm (1 x turn of wheels)	3 500 mm (1 x turn of wheels)
Overall length (in the direction of travel):	3 650 mm	3 650 mm	3 650 mm
Depth in field:	1 350 mm	1 600 mm	1 850 mm
Total weight:	3.5 t	4.0 t	4.4 t
Electric power:	6 kW	11.5 kW	17.0 kW
Tank Volume:	4.8 m³	7.5 m³	11.5 m³
Water consumption per cycle:	approximately 30 l	approximately 40 l	approximately 50 l
Number of pumps:	1 piece	2 pieces	3 pieces
Maximum pump power:	1 600 l/min	3 200 l/min	4 800 l/min

Request a quote

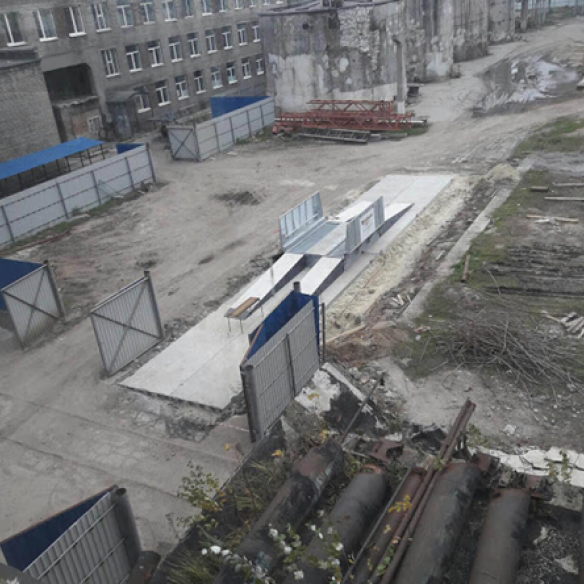

PEAKWASH MOBILE

PEAKWASH MOBILE system can be used in all situations where in-ground digging is inappropriate or prohibited. This system is unique, fast and easy to assemble, and with high utility value. For a medium number of trucks per hour
Option: oil separator, winter condition

Technical Parameters	PEAKWASH MOBILE
Maximum number of vehicles per hour:	40 vehicles per hour
Passing width (in the direction of travel):	2 750 mm / 3 000 mm
Overall width (in the direction of travel):	3 650 mm / 3 900 mm
Working length (in the direction of travel):	3 800 mm (1 x turn of wheels)
Overall length (in the direction of travel):	14 000 mm
Depth in field:	0.0 mm
Height of sidewalls:	1 500 mm
Total weight:	9.6 / 9.8 t
Electric power:	5.5 kW
Tank Volume:	4.7 m³ / 5 m³
Water consumption per cycle:	approximately 30 l
Number of pumps:	1 piece
Maximum pump power:	1 600 l/min

Request a quote

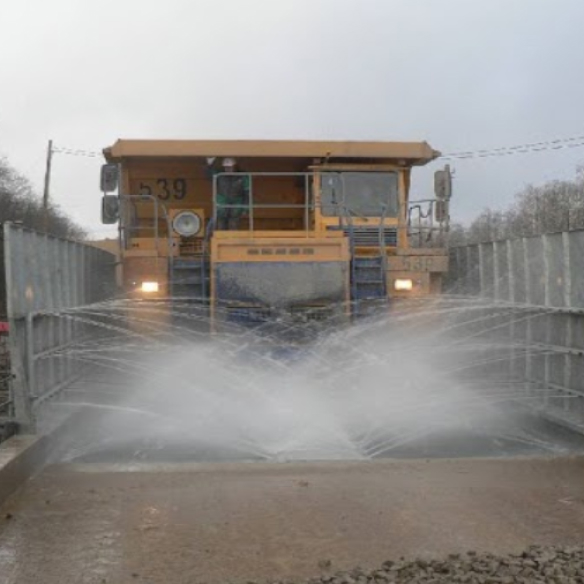

STATIONARY WHEEL WASH

PEAKWASH 400, 700, 1000 are the most powerful systems. The wash systems are designed to remove medium to heavy dirt and mud deposits from vehicle tires. The wash systems allow one to three tire rotations during the wash cycle and have a maximum performance of up to 90 vehicles per hour
Option: oil separator, winter condition, bigger water tanks, water gates, semi-mobile installation

Technical Parameters	PEAKWASH 400	PEAKWASH 700	PEAKWASH 1000
Maximum number of vehicles per hour:	50 vehicles per hour *	70 vehicles per hour *	90 vehicles per hour *
Passing width (in the direction of travel):	2 750 mm / 3 000 mm	2 750 mm / 3 000 mm	2 750 mm / 3 000 mm
Overall width (in the direction of travel):	7 000 mm	7 000 mm	7 000 mm
Working length (in the direction of travel):	3 800 mm (1 x turn of wheels)	6 500 mm (2 x turn of wheels)	9 200 mm (3 x turn of wheels)
Overall length (in the direction of travel):	6 500 mm	8 000 mm	9 500 mm
Depth in field:	2 600 mm	2 600 mm	2 600 mm
Height of sidewalls:	1 500 mm	1 500 mm	1 500 mm
Total weight:	4.7 t	6.2 t	9.3 t
Electric power:	11.50 kW	17.0 kW	22.5 kW
Tank Volume:	12 m³	17 m³	22 m³
Water consumption per cycle:	approximately 20 l	approximately 30 l	approximately 40 l
Number of pumps:	2 pieces	3 pieces	4 pieces
Maximum pump power:	3 200 l/min.	4 800 l/min.	6 400 l/min.
* Compliant with water recycling

Request a quote

Request

Which system fits your site?

Tell us the site, the vehicles and the space you have – we will suggest the model and quote the delivery.
