Diaphragms Pile Crushers

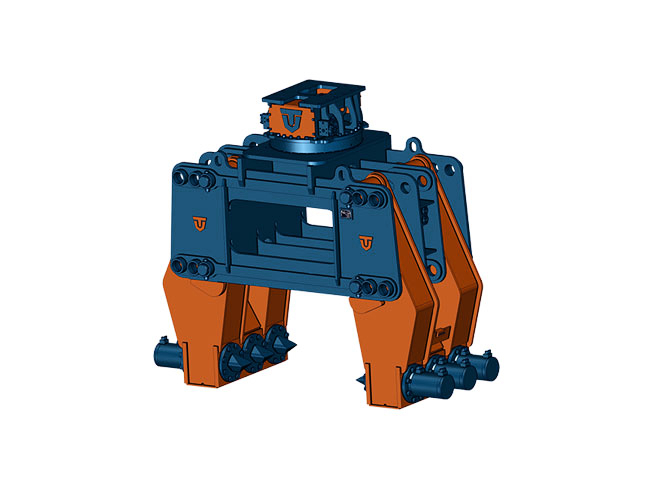

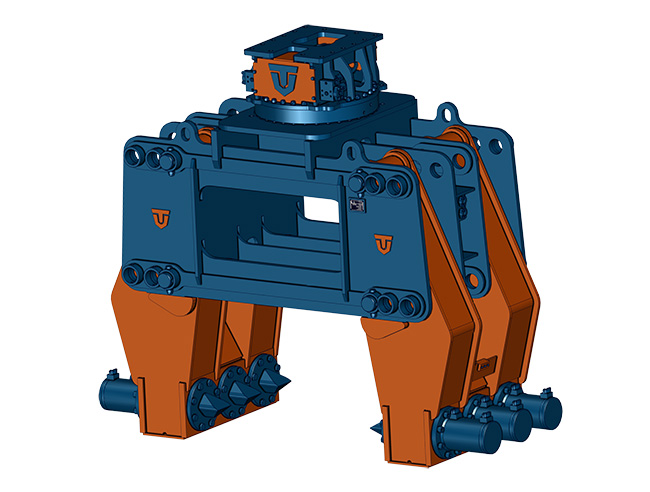

SC Pile crusher

Equipment created for the crushing of reinforced concrete diaphragms. The frame is adjustable in size depending on the cement barrier to be demolished.

• 2 models
• weights: from 4.650 to 5.300 kg
• excavator weights: from 30 to 70 ton
• openings: from 1.000 to 1.500 mm
• rotation: yes

1. Six opposing cylinders release a horizontal pressure along a flat section, breaking up the concrete leaving the inner reinforcing rebar intact and clean
2. The frame is adjustable in width, from 1.000 to 1.500 mm, depending on the thickness of the diaphragm to be demolished
3. They can be installed on different equipment (excavators, cranes, telescopic arms, etc.) thanks to the use of lifting chains
4. Also available with continuous hydraulic rotation
