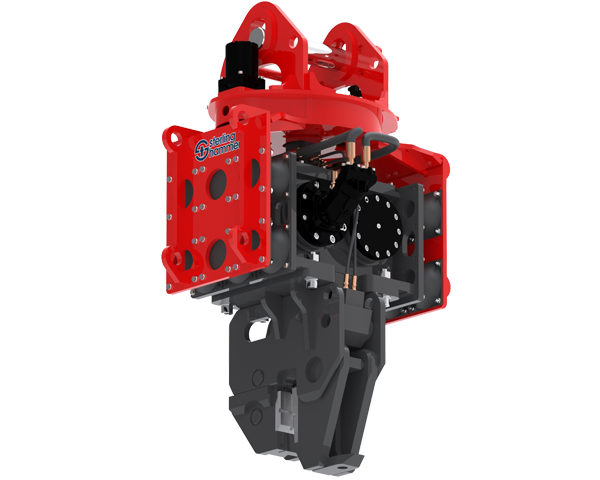

Sterling Hammer
Vibratory pile driving hammer mounted on an excavator. Side-grip and multi-side-grip versions are available; depending on the model they add 90° tilt, an auto-hold function and 360° hydraulic rotation.
-
13 models -
weights: from 1,410 to 3,800 kg -
excavator weights: from 13 to 50 ton

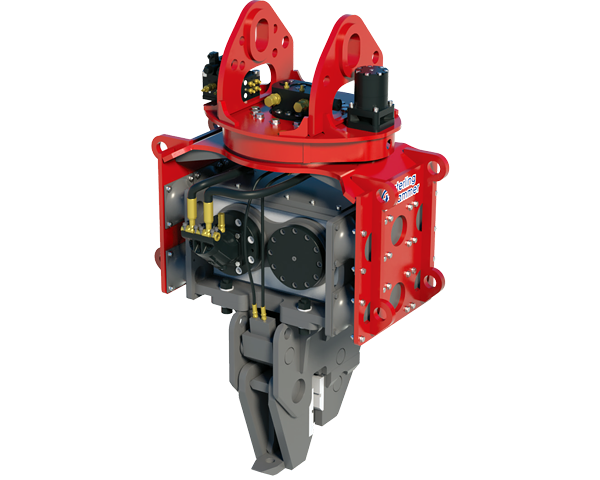

Sterling Hammer. 360° rotation, 90° tilt.
| Model | Excavator (t) | Weight (kg) | Oil flow (l/min) | Centrifugal force (kN) | Frequency (rpm) |
|---|---|---|---|---|---|
| SH25 | 20-26 | 1,520 | 150-170 | 530 | 3,300-3,600 |
| SH30 | 28-36 | 1,810 | 180-220 | 580 | 2,800-3,600 |
| SH40 | 36-50 | 2,050 | 240-260 | 940 | 3,000-3,250 |
Auto Tilt Hammer. 360° rotation, 90° tilt with “Auto Hold”.
| Model | Excavator (t) | Weight (kg) | Oil flow (l/min) | Centrifugal force (kN) | Frequency (rpm) |
|---|---|---|---|---|---|
| SH15 TILT | 13-18 | 1,410 | 90-110 | 324 | 2,800-3,400 |
| SH25 TILT | 20-26 | 1,620 | 150-170 | 530 | 3,300-3,600 |
| SH30 TILT | 28-36 | 1,910 | 180-220 | 580 | 2,800-3,600 |
| SH40 TILT | 36-50 | 2,250 | 240-260 | 940 | 3,000-3,250 |
Multi-side grip pile driver. 360° rotation, tilt ±30°, pile grip diameter 76-610 mm.
| Model | Excavator (t) | Weight (kg) | Oil flow (l/min) | Centrifugal force (kN) | Frequency (rpm) |
|---|---|---|---|---|---|
| SG15 | 14-22 | 1,974 | 90-108 | 313 | 2,800-3,370 |
| SG25 | 20-26 | 2,820 | 150-170 | 530 | 3,300-3,600 |
| SG30 | 28-36 | 3,300 | 180-220 | 580 | 2,800-3,600 |
| SG40 | 36-50 | 3,800 | 240-260 | 940 | 3,000-3,250 |
Side grip pile driver, W type. 360° rotation, tilt ±30°.
| Model | Excavator (t) | Weight (kg) | Oil flow (l/min) | Centrifugal force (kN) | Frequency (rpm) |
|---|---|---|---|---|---|
| SG25W | 17-26 | 2,620 | 150-170 | 530 | 3,300-3,600 |
| SG30W | 22-36 | 2,800 | 180-220 | 580 | 2,800-3,600 |
Setting pressure 300 bar on all models. Weight: Sterling Hammer and Auto Tilt without extension boom, multi-side grip without mounting adapter, W type with mounting cap.
- Most powerful hammer in class: bigger and heavier eccentric weights, 15% higher productivity than traditional vibratory hammers
- Centered double eccentric weights for better durability of bearings
- Transverse cushion array minimizes the chance of bending of hammer and piles
- Auto Tilt: 90° tilt and 360° hydraulic rotation, “Auto Hold” function in the 90° position, no failure-prone tilt cylinders
- Side grip pile drivers: no auxiliary extended arm required, hydraulic revolving mounting adapter (360°) with hydraulic tilt ±30°; a single excavator operator, no ground crew needed
- Low maintenance cost: concise structure of components, longer durability
